Following the post on exact Shapley values for time series explainability, this post illustrates an example of how to use sensitivity analysis to explain time series forecasts, based on the ahead::dynrmf model and external regressors. What is sensitivity analysis in this context? It’s about evaluating the impact of changes in the external regressors on the time series forecast.

The post uses the ahead::dynrmf_sensi function to compute the sensitivities, and the ahead::plot_dynrmf_sensitivity function to plot the results.

First, install the package:

devtools::install_github("Techtonique/ahead")

Then, run the following code:

# devtools::install_github("Techtonique/ahead")
# install.packages(c("fpp2", "e1071", "patchwork"))

library(ahead)
library(fpp2)
library(patchwork)
library(e1071)

#' # Example 1: US Consumption vs Income
sensitivity_results_auto <- ahead::dynrmf_sensi(
y = fpp2::uschange[, "Consumption"],
xreg = fpp2::uschange[, "Income"],
h = 10
)

plot1 <- ahead::plot_dynrmf_sensitivity(sensitivity_results_auto,
                           title = "Sensitivity of Consumption to Income (Ridge)",
                           y_label = "Effect (ΔConsumption / ΔIncome)")

#' # Example 1: US Consumption vs Income
sensitivity_results_auto_svm <- ahead::dynrmf_sensi(
  y = fpp2::uschange[, "Consumption"],
  xreg = fpp2::uschange[, "Income"],
  h = 10,
  fit_func = e1071::svm # additional parameter passed to ahead::dynrmf
)

plot2 <- ahead::plot_dynrmf_sensitivity(sensitivity_results_auto_svm,
                                        title = "Sensitivity of Consumption to Income (SVM)",
                                        y_label = "Effect (ΔConsumption / ΔIncome)")


# Example 2: TV Advertising vs Insurance Quotes
sensitivity_results_tv <- ahead::dynrmf_sensi(
 y = fpp2::insurance[, "Quotes"],
   xreg = fpp2::insurance[, "TV.advert"],
   h = 8
 )

plot3 <- ahead::plot_dynrmf_sensitivity(sensitivity_results_tv,
                           title = "Sensitivity of Insurance Quotes to TV Advertising (Ridge)",
                           y_label = "Effect (ΔQuotes / ΔTV.advert)")

sensitivity_results_tv_svm <- ahead::dynrmf_sensi(
  y = fpp2::insurance[, "Quotes"],
  xreg = fpp2::insurance[, "TV.advert"],
  h = 8,
  fit_func = e1071::svm # additional parameter passed to ahead::dynrmf
)

plot4 <- ahead::plot_dynrmf_sensitivity(sensitivity_results_tv_svm,
                                        title = "Sensitivity of Insurance Quotes to TV Advertising (SVM)",
                                        y_label = "Effect (ΔQuotes / ΔTV.advert)")

(plot1+plot2)

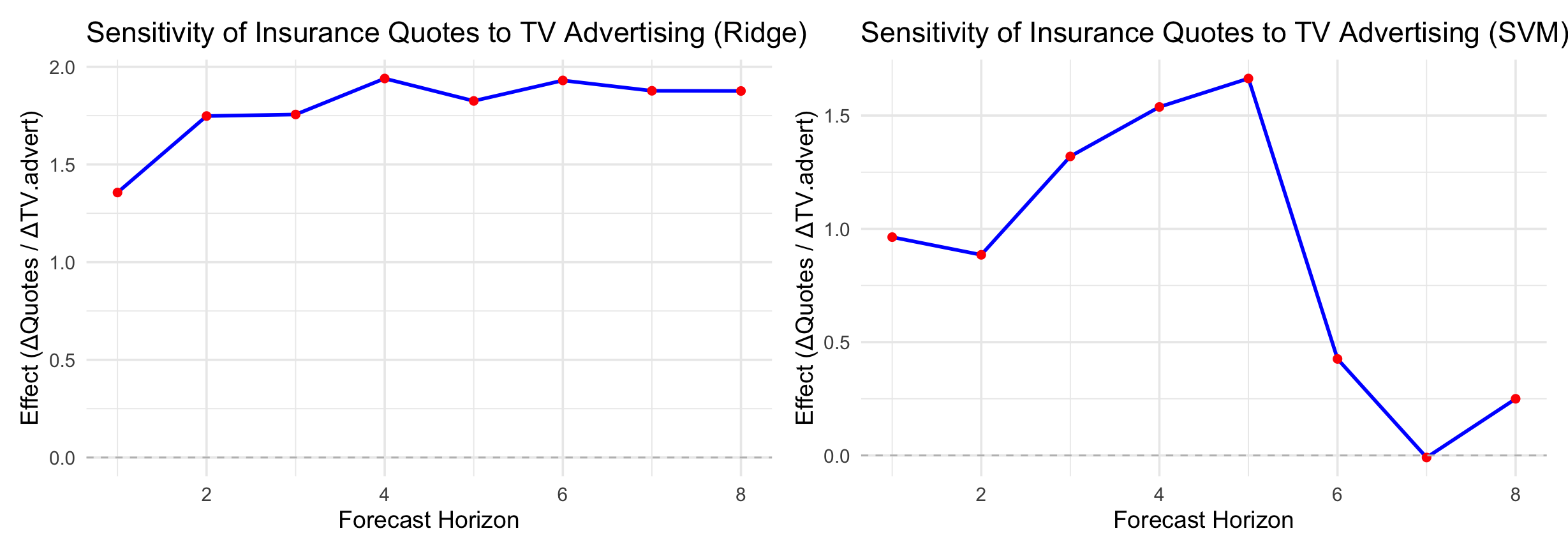

(plot3+plot4)

image-title-here image-title-here
