Introduction
This post demonstrates how to use www.techtonique.net’s API for programming language-agnostic reserving using Machine Learning models. We’ll use the RAA dataset available at https://raw.githubusercontent.com/Techtonique/datasets/refs/heads/main/tabular/triangle/raa.csv.
The API supports various Machine Learning models including:
- RidgeCV
- LightGBM
- XGBoost
- ExtraTrees
The API returns among other things IBNR (Incurred But Not Reported) estimates along with confidence intervals, making it easy to compare different models’ predictions.
Setup
We’ll:
- Download the RAA dataset
- Send requests to the API for each model
- Visualize and compare the results
Let’s get started!
0 - Download data
From https://raw.githubusercontent.com/Techtonique/datasets/refs/heads/main/tabular/triangle/raa.csv
!wget https://raw.githubusercontent.com/Techtonique/datasets/refs/heads/main/tabular/triangle/raa.csv
--2025-06-13 19:41:16-- https://raw.githubusercontent.com/Techtonique/datasets/refs/heads/main/tabular/triangle/raa.csv
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.109.133, 185.199.110.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.108.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 995 [text/plain]
Saving to: ‘raa.csv.1’
raa.csv.1 100%[===================>] 995 --.-KB/s in 0s
2025-06-13 19:41:16 (54.7 MB/s) - ‘raa.csv.1’ saved [995/995]
%load_ext rpy2.ipython
The rpy2.ipython extension is already loaded. To reload it, use:
%reload_ext rpy2.ipython
Using RidgeCV as a Machine Learning model Note that you can use https://curlconverter.com/ to translate the following request in your favorite programming language.
1 - Send requests to www.techtonique.net
Tokens available for free at https://www.techtonique.net/token.
!curl -X POST \
-H "Authorization: Bearer YOUR_TOKEN_HERE" \
-F "file=@./raa.csv;type=text/csv" \
"https://www.techtonique.net/mlreserving?method=RidgeCV" > ridge_ibnr.json
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 2071 100 893 100 1178 896 1182 --:--:-- --:--:-- --:--:-- 2077
Using LightGBM as a Machine Learning model Note that you can use https://curlconverter.com/ to translate the following request in your favorite programming language.
!curl -X POST \
-H "Authorization: Bearer YOUR_TOKEN_HERE" \
-F "file=@./raa.csv;type=text/csv" \
"https://www.techtonique.net/mlreserving?method=lightgbm" > lightgbm_ibnr.json
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 2069 100 891 100 1178 1267 1675 --:--:-- --:--:-- --:--:-- 2938
Using XGBoost as a Machine Learning model Note that you can use https://curlconverter.com/ to translate the following request in your favorite programming language.
!curl -X POST \
-H "Authorization: Bearer YOUR_TOKEN_HERE" \
-F "file=@./raa.csv;type=text/csv" \
"https://www.techtonique.net/mlreserving?method=xgboost" > xgboost_ibnr.json
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 2010 100 832 100 1178 1123 1591 --:--:-- --:--:-- --:--:-- 2712
Using ExtraTreesRegressor as a Machine Learning model Note that you can use https://curlconverter.com/ to translate the following request in your favorite programming language.
!curl -X POST \
-H "Authorization: Bearer YOUR_TOKEN_HERE" \
-F "file=@./raa.csv;type=text/csv" \
"https://www.techtonique.net/mlreserving?method=ExtraTreesRegressor" > et_ibnr.json
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
100 2076 100 898 100 1178 1071 1405 --:--:-- --:--:-- --:--:-- 2477
2 - Extract and plot results
The programming language used in this post is R, but your can use any programming language capable to read JSON or speak http directly (see https://curlconverter.com/).
install.packages("jsonlite")
library("jsonlite")
Installing package into ‘/usr/local/lib/R/site-library’
(as ‘lib’ is unspecified)
trying URL 'https://cran.rstudio.com/src/contrib/jsonlite_2.0.0.tar.gz'
Content type 'application/x-gzip' length 1055849 bytes (1.0 MB)
==================================================
downloaded 1.0 MB
The downloaded source packages are in
‘/tmp/Rtmp4Rnpdc/downloaded_packages’
(ridge_ibnr <- fromJSON("./ridge_ibnr.json"))
(lightgbm_ibnr <- fromJSON("./lightgbm_ibnr.json"))
(xgboost_ibnr <- fromJSON("./xgboost_ibnr.json"))
(et_ibnr <- fromJSON("./et_ibnr.json"))
$Origin
[1] 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990
$Ultimate
[1] 17079.00 21189.25 26681.43 28958.43 35834.39 23260.73 21003.31 24944.61
[9] 14434.00 15609.66
$IBNR
[1] 412.2454 1043.4278 1646.4278 2273.3870 3989.7307 5783.3109 7587.6089
[8] 9910.0009 15609.6626
$`IBNR 95%`
[1] 1163.717 2944.499 4645.851 6414.730 11253.996 16310.950 21398.112
[8] 27945.501 44013.410
$`Ultimate Lo95`
[1] 17079.000 20922.619 26006.919 27894.220 34365.021 20683.340 17268.063
[8] 20044.589 8034.937 5531.906
$`Mean Ultimate`
[1] 228994.8
$`Mean IBNR`
[1] 48255.8
$`Total IBNR 95%`
[1] 136090.8
plot_ibnr <- function(ibnr_data, ml_model="")
{
# Remove the first origin year
origin_years <- ibnr_data$Origin[-1]
# Extract IBNR (mean) and remove the first value
(ibnr_mean <- ibnr_data$IBNR)
# Extract IBNR 95% upper bound and remove the first value
(ibnr_upper <- ibnr_data$`IBNR 95%`) # assuming [[3]] is "IBNR 95%"
# Plotting - initialize empty plot with correct dimensions
plot(origin_years, ibnr_upper, type = "l",
ylim = c(min(ibnr_mean), max(ibnr_upper)),
col="red", lwd=2,
xlab = "Origin Year", ylab = "IBNR",
main = paste0("IBNR - Mean and Upper 95% Bound \n for", ml_model))
# Draw shaded area between mean and upper bound
polygon(x = c(origin_years, rev(origin_years)),
y = c(ibnr_mean, rev(ibnr_upper)),
col = rgb(0, 0, 1, 0.2), border = NA)
# Add mean IBNR line
lines(origin_years, ibnr_mean, col = "blue", lwd = 2)
# Optional: add grid
grid()
# Optional: add legend
legend("topleft", legend = c("Mean IBNR", "Upper 95%"),
col = c("blue", "red"),
lty = 1, pch = c(NA, NA), lwd = 2)
}

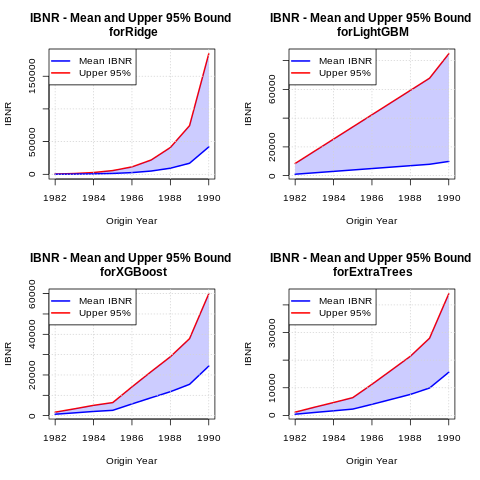

par(mfrow=c(2, 2))
plot_ibnr(ridge_ibnr, ml_model="Ridge")
plot_ibnr(lightgbm_ibnr, ml_model="LightGBM")
plot_ibnr(xgboost_ibnr, ml_model="XGBoost")
plot_ibnr(et_ibnr, ml_model="ExtraTrees")
