Survival analysis is a branch of statistics that deals with the analysis of time-to-event data. It is commonly used in fields such as medicine, engineering, and social sciences to study the time until an event occurs, such as death, failure, or relapse.
Survival stacking is a method that allows you to use any classifier for survival analysis. It works by transforming the survival data into a format that can be used with supervised classifiers, and then applying the classifier to this transformed data.
This method is particularly useful when you want to leverage the power of machine learning algorithms for survival analysis, as it allows you to use a wide range of classifiers without having to worry about the specific requirements of survival analysis.
The survivalist
package provides a convenient way to perform survival stacking, as demonstrated below (link to a notebook at the end of this post).
!pip install survivalist
import matplotlib.pyplot as plt
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.ensemble import RandomForestClassifier, ExtraTreesClassifier
from sklearn.linear_model import LogisticRegression
from survivalist.datasets import load_whas500, load_veterans_lung_cancer, load_gbsg2
from survivalist.survstack import SurvStacker
import pandas as pd
def _encode_categorical_columns(df, categorical_columns=None):
"""
Automatically identifies categorical columns and applies one-hot encoding.
Parameters:
- df (pd.DataFrame): The input DataFrame with mixed continuous and categorical variables.
- categorical_columns (list): Optional list of column names to treat as categorical.
Returns:
- pd.DataFrame: A new DataFrame with one-hot encoded categorical columns.
"""
# Automatically identify categorical columns if not provided
if categorical_columns is None:
categorical_columns = df.select_dtypes(include=['object', 'category']).columns.tolist()
# Apply one-hot encoding to the identified categorical columns
df_encoded = pd.get_dummies(df, columns=categorical_columns)
# Convert boolean columns to integer (0 and 1)
bool_columns = df_encoded.select_dtypes(include=['bool']).columns.tolist()
df_encoded[bool_columns] = df_encoded[bool_columns].astype(int)
return df_encoded
def analyze_survival_dataset(X, y, dataset_name):
"""Analyze a survival dataset using Random Forest and Extra Trees models"""
# Data preparation
X = X.astype(float)
print("Shape of X:", X.shape)
print("Shape of y:", y.shape)
X_train, X_test, y_train, y_test = train_test_split(
X, y, test_size=0.2, random_state=42
)
# Initialize models
survstacker_rf = SurvStacker(
clf=RandomForestClassifier(random_state=42),
type_sim="kde",
loss = "ipcwls"
)
survstacker_et = SurvStacker(
clf=ExtraTreesClassifier(random_state=42),
type_sim="kde",
loss = "ipcwls"
)
# Fit models
survstacker_rf.fit(X_train, y_train)
survstacker_et.fit(X_train, y_train)
# Get survival function predictions with confidence intervals
surv_funcs_rf = survstacker_rf.predict_survival_function(X_test[:2], level=80)
surv_funcs_et = survstacker_et.predict_survival_function(X_test[:2], level=80)
print(f"Survival functions for {dataset_name} dataset:")
# Plotting
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(15, 5))
colors = ['red', 'green', 'blue']
# Plot RF predictions
ax1.set_title(f'Random Forest - {dataset_name}')
for i, (mean, lower, upper) in enumerate(zip(
surv_funcs_rf.mean, surv_funcs_rf.lower, surv_funcs_rf.upper)):
times = mean.x
ax1.step(times, mean.y, where="post", label=f'Patient {i+1}', color=colors[i])
ax1.fill_between(times, lower.y, upper.y, alpha=0.2, color=colors[i], step="post")
ax1.grid(True)
ax1.set_xlabel('Time')
ax1.set_ylabel('Survival Probability')
ax1.legend()
# Plot ET predictions
ax2.set_title(f'Extra Trees - {dataset_name}')
for i, (mean, lower, upper) in enumerate(zip(
surv_funcs_et.mean, surv_funcs_et.lower, surv_funcs_et.upper)):
times = mean.x
ax2.step(times, mean.y, where="post", label=f'Patient {i+1}', color=colors[i])
ax2.fill_between(times, lower.y, upper.y, alpha=0.2, color=colors[i], step="post")
ax2.grid(True)
ax2.set_xlabel('Time')
ax2.set_ylabel('Survival Probability')
ax2.legend()
plt.show()
#plt.tight_layout()
#plt.savefig(f'survival_curves_{dataset_name}.png')
#plt.close()
# Import necessary libraries
# Analyze WHAS500 dataset
print("Analyzing WHAS500 dataset...")
X, y = load_whas500()
analyze_survival_dataset(X, y, "WHAS500")
# Analyze Veterans Lung Cancer dataset
print("\nAnalyzing Veterans Lung Cancer dataset...")
X, y = load_veterans_lung_cancer()
X = _encode_categorical_columns(X)
analyze_survival_dataset(X, y, "Veterans")

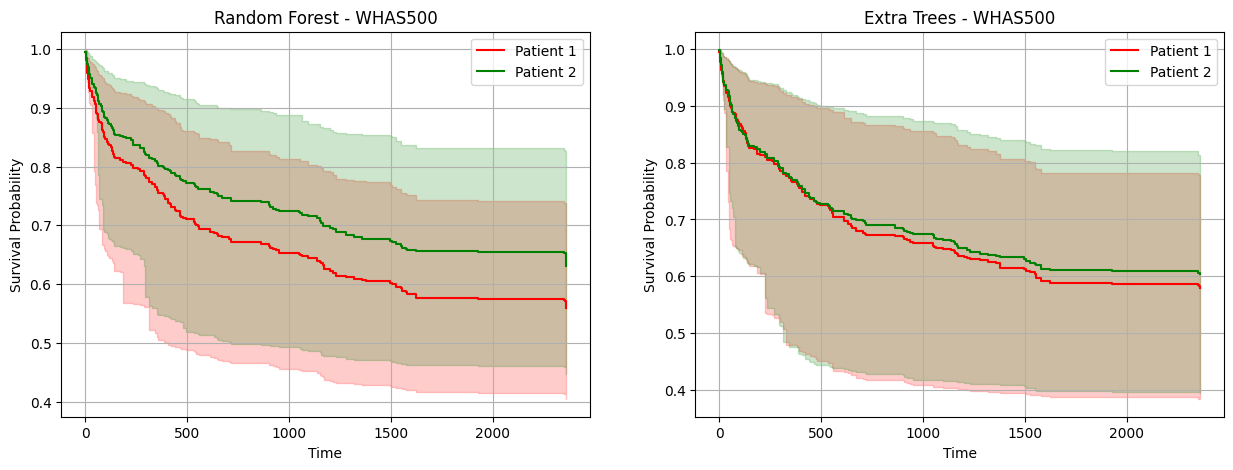

Analyzing WHAS500 dataset... Shape of X: (500, 14) Shape of y: (500,) Survival functions for WHAS500 dataset:
Analyzing Veterans Lung Cancer dataset... Shape of X: (137, 11) Shape of y: (137,) Survival functions for Veterans dataset:
R version¶
# prompt: load rpy2 extension
%load_ext rpy2.ipython
%%R
install.packages(c("ggplot2", "gridExtra"))
%%R
install.packages("reticulate")
%%R
library(reticulate)
system("pip uninstall -y survivalist")
system("pip install survivalist --upgrade --no-cache-dir --verbose")
# Import Python modules (/!\ this will work if the Python packages are in the environment, e.g in Colab)
np <- import("numpy")
pd <- import("pandas")
lgb <- import("lightgbm")
xgb <- import("xgboost")
survivalist <- import("survivalist")
sklearn <- import("sklearn")
%%R
# Load reticulate and install survivalist if needed
library(reticulate)
library(ggplot2)
library(gridExtra)
# Import Python modules using reticulate
np <- import("numpy")
pd <- import("pandas")
plt <- import("matplotlib.pyplot")
sklearn <- import("sklearn")
survivalist <- import("survivalist")
# Load WHAS500 dataset (replace with load_veterans_lung_cancer() for other datasets)
data <- survivalist$datasets$load_whas500()
X <- data[[1]] # Features (Python object)
y <- data[[2]] # Survival targets (Python object)
# Function to encode categorical columns (e.g., for Veterans Lung Cancer)
encode_categorical_columns <- function(df_py) {
pd$get_dummies(r_to_py(df_py)) # Convert to R, encode, return Python object
}
# Split data in Python (avoid unnecessary R conversions)
train_test_split <- sklearn$model_selection$train_test_split
split_result <- train_test_split(
X, y,
test_size = 0.2,
random_state = 42L
)
# Extract X_train, X_test, y_train, y_test (Python objects)
X_train <- split_result[[1]]
X_test <- split_result[[2]]
y_train <- split_result[[3]]
y_test <- split_result[[4]]
# Initialize and train SurvStacker models
SurvStacker <- survivalist$survstack$SurvStacker
rf_model <- SurvStacker(
clf = sklearn$ensemble$RandomForestClassifier(random_state = 42L),
type_sim = "kde",
loss = "ipcwls"
)
et_model <- SurvStacker(
clf = sklearn$ensemble$ExtraTreesClassifier(random_state = 42L),
type_sim = "kde",
loss = "ipcwls"
)
# Fit models
rf_model$fit(X_train, y_train)
et_model$fit(X_train, y_train)
# Predict survival functions with 95% confidence intervals
surv_funcs_rf <- rf_model$predict_survival_function(X_test[0:2, ], level = 95)
surv_funcs_et <- et_model$predict_survival_function(X_test[0:2, ], level = 95)
# Convert Python survival functions to R lists
parse_surv_func <- function(surv_func) {
lapply(seq_along(py_to_r(surv_func$mean)), function(i) {
mean <- surv_func$mean[[i]]
lower <- surv_func$lower[[i]]
upper <- surv_func$upper[[i]]
data.frame(
time = unlist(mean$x),
mean = unlist(mean$y),
lower = unlist(lower$y),
upper = unlist(upper$y),
patient = paste0("Patient ", i)
)
})
}
rf_list <- parse_surv_func(surv_funcs_rf)
et_list <- parse_surv_func(surv_funcs_et)
# Plot survival curves using ggplot2
plot_survival_curves <- function(data_list, title) {
df <- do.call(rbind, data_list)
ggplot(df, aes(x = time, color = patient)) +
geom_line(aes(y = mean), size = 1) +
geom_ribbon(aes(ymin = lower, ymax = upper), alpha = 0.2) +
labs(title = title, x = "Time", y = "Survival Probability") +
theme_minimal() +
theme(legend.position = "bottom")
}
p1 <- plot_survival_curves(rf_list, "Random Forest")
p2 <- plot_survival_curves(et_list, "Extra Trees")
grid.arrange(p1, p2, ncol = 2)
In addition: Warning message: Using `size` aesthetic for lines was deprecated in ggplot2 3.4.0. ℹ Please use `linewidth` instead. This warning is displayed once every 8 hours. Call `lifecycle::last_lifecycle_warnings()` to see where this warning was generated.
